How to measure network throughoutput and another parameters of Windows machine using NT Testing TCP Tool (ntttcp)

Update.

Для того, чтобы протестировать сеть между двумя Windows-машинами, необбходимо скачать бесплатный инструмент NT TCP Testing tool от Microsoft отсюда.

Скачиваем, распаковываем, например, на диск С: в корень.

Далее на первой машине открываем cmd и заходим в папку соответствующую архитектуре Windows:

cd C:\NTttcp-v5.28\x64

запускаем в режиме приемника:

NTttcp.exe -r -m 4,0,10.1.2.3 -a 6

где -r - режим приемника,
-m - количество_сессий,Номер_ЦП,IP_этой_машины

На втором ПК/сервере делаем то же самое, только вместо ключа -r указываем ключ -s и IP первой машины.

После того, как тест пройдет, наслаждаемся результатами выведенными в консоль.


Old Article.

Steps to do:

1. Download on both Windows machines NTttcp from MS site: http://msdn.microsoft.com/en-us/library/windows/hardware/gg463264.aspx

2. On both Win machines install NTttcp - installation is straightforward.

3. On both Win machines open CMD and cd to installed program's dir (for x64 machines add (x86) and path must be in quotes):

cd "C:\Program Files (x86)\Microsoft Corporation\NT Testing TCP Tool"

4. In that dir will be .docx document with instructions. According to it:

To use NTttcp as a receiver, change the name to NTttcpr.exe.

To use NTttcp as a sender, change the name to NTttcps.exe.

So, rename NTttcp_x64.exe (for x64 machine) as described above.

5. Launch receiver side by executing command:

NTttcpr -m 1,0,10.1.2.3 -a 6 -fr

arguments are:
“-m 1,0,10.1.2.3” specifies a single thread bound to CPU 0 that is bound on the receiving computer to IP address 10.1.2.3.
“-a 6” specifies asynchronous data transfer that posts six receive overlapped buffers.
“-fr” directs NTttcp to always post full-length (64 K) receive buffers.
This example uses the following default settings:
A buffer size of 64 KB.
The expected number of buffers to be received of 20,000.
A receiver that starts listening on port 5001.

6. Then execute the sender command and wait for results:

NTttcps -m 1,0,10.1.2.3 -a 2

runs NTttcps with the following explicit settings:
“-m 1,0,10.1.2.3” specifies a single thread bound to CPU 0 that connects to the computer with IP address 10.1.2.3.
“-a 2” specifies asynchronous data transfer that posts two send overlapped buffers.

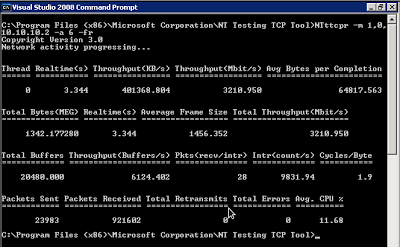

Results will be like on on pics below:
